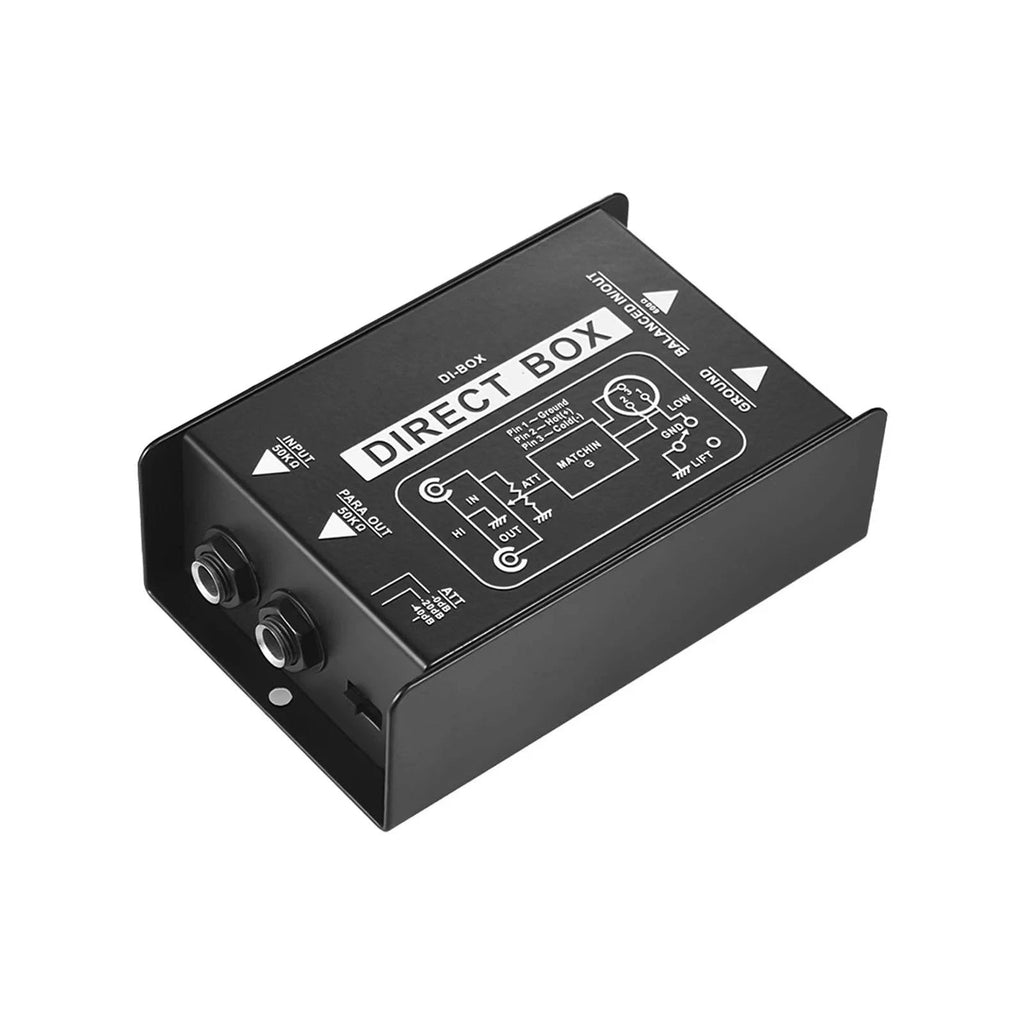

Single Channel Passive DI-Box Direct Injection Audio Box Balanced&Unbalance Signal Converter with XLR TRS Interfaces for Guitar

Product Description: The Single Channel Passive DI-Box is an essential tool for musicians and audio engineers looking to achieve optimal sound quality. This compact metal direct injection audio box is designed to convert high-impedance, line-level, and unbalanced output signals into low-impedance, microphone-level, and balanced input signals with ease. Features:

• Compact Design: Lightweight and portable, perfect for on-the-go musicians and studio use.
• Versatile Connectivity: Equipped with 1/4" TRS input and output jacks, as well as a balanced male XLR output for seamless integration with mixing consoles.
• Noise Reduction: Features a ground lift switch to minimize hum noise and ground loops, ensuring a clean and clear audio signal.
• Adjustable Attenuation: ATT switch allows you to adjust input levels (-0dB, -20dB, -40dB) for maximum control over your sound.

Specifications:

• Material: Metal
• Jack: 2 * 1/4" TRS; 1 * XLR
• Item Size: 12 * 7.5 * 4cm / 4.7 * 3 * 1.6in
• Item Weight: 370g / 13.1oz
• Package Size: 23.5 * 16 * 8cm / 9.3 * 6.3 * 3.1in
• Package Weight: 545g / 1.2lbs

Package List:

• 1 * Audio Converter
• 1 * Users' Manual (English)

Note: This DI-Box is frequently used to connect electric guitars or basses to a mixing console's microphone input jack, enhancing signal integrity and delivering rich, full sound.
