WUPP CSZH-1839A1 1 Pair 12V Heated Handle Grips Scooter Hot Grips with 5+1 Temperature Adjustable

• The product switch has a built-in intelligent temperature control chip, with five + 1 adjustable temperature levels. Intelligent temperature control is more convenient and can be adjusted to the corresponding temperature according to personal preferences
• The product has a memory function, which allows it to maintain the optimal temperature last adjusted when turned on at any time, making it more considerate and convenient
• The product is specially designed with a neutral function. When the switch is adjusted to the neutral position, the white light will light up for 5 seconds and then flash 5 times to automatically shut down. It will not consume battery power and is safer and more convenient to use
• The product adopts an integrated design to prevent rain and dust from entering the internal parts and corroding the parts. The service life is longer and safer. The double throttle line buckle provides a wider installation range

Specification:

• Model No.: CSZH-1839A1
• Net weight: 328g
• Material: Butadiene Rubber
• Handle length: left handle: 125*36mm, right handle: 137*36mm
• Input Voltage: DC12V
• Working Voltage: DC12V-16V
• Output power: first red: 35W, second orange: 26W, third yellow: 19W, fourth green: 15W, fifth blue: 12W, sixth white: empty (13V voltage test data)
• Temperature of working ring mirror: -20℃- 50℃
• Pipe diameter: 22mm
• Scope of application: Suitable for NIU N1S, U+, U+B and some similar right hand style 12V electric scooter
• Protection Voltage: When the input voltage ≥ 16V, it can be turned on, but the white light flashes 3 times quickly and then shut down.

How to Use:

• 1. The red wire is the positive pole, the black wire is the negative pole, and the yellow wire is the ACC wire. Please do not connect it incorrectly, otherwise it will easily cause damage to the product.
• 2. Click the power button: to switch gears and turn on
• 3. The machine is turned on when the power is turned on. It works in the memory gear (i.e. the gear before shutting down) and the original default is neutral. It does not change gears when it is turned on.
• 4. The current gear will be memorized when working in any gear. It can be memorized even if the power is lost. Press for 3 seconds to shut down.
• 5. LED indicates different gear colors: first gear red: 100%, second gear orange: 75%, third gear yellow: 50%, fourth gear green: 40%, fifth gear blue: 30%, sixth gear white: neutral
• 6. With anti-surge and reverse connection protection. With ACC control function

Package included

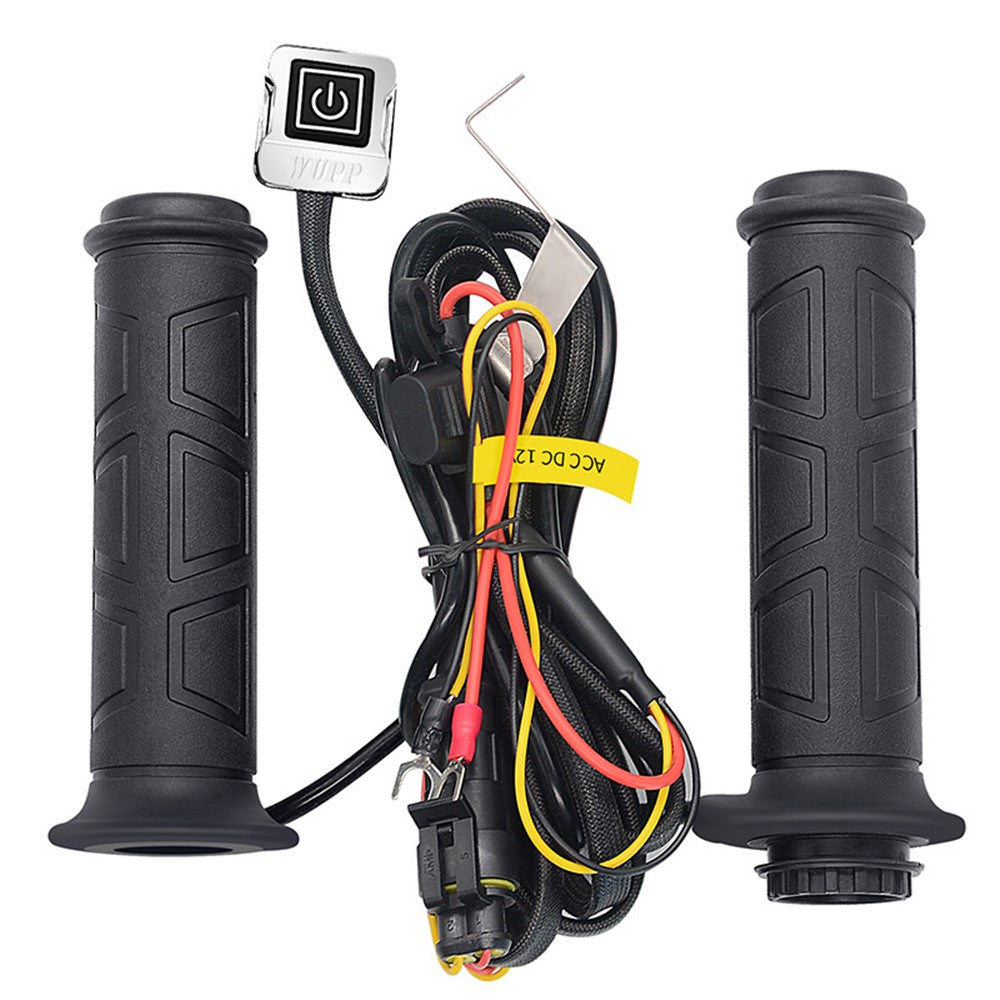

• 1 Pair x Heated Handle Grips
• 1 x Adhesive
• 1 x Rearview Mirror Mounting Bracket
• Other items not included
