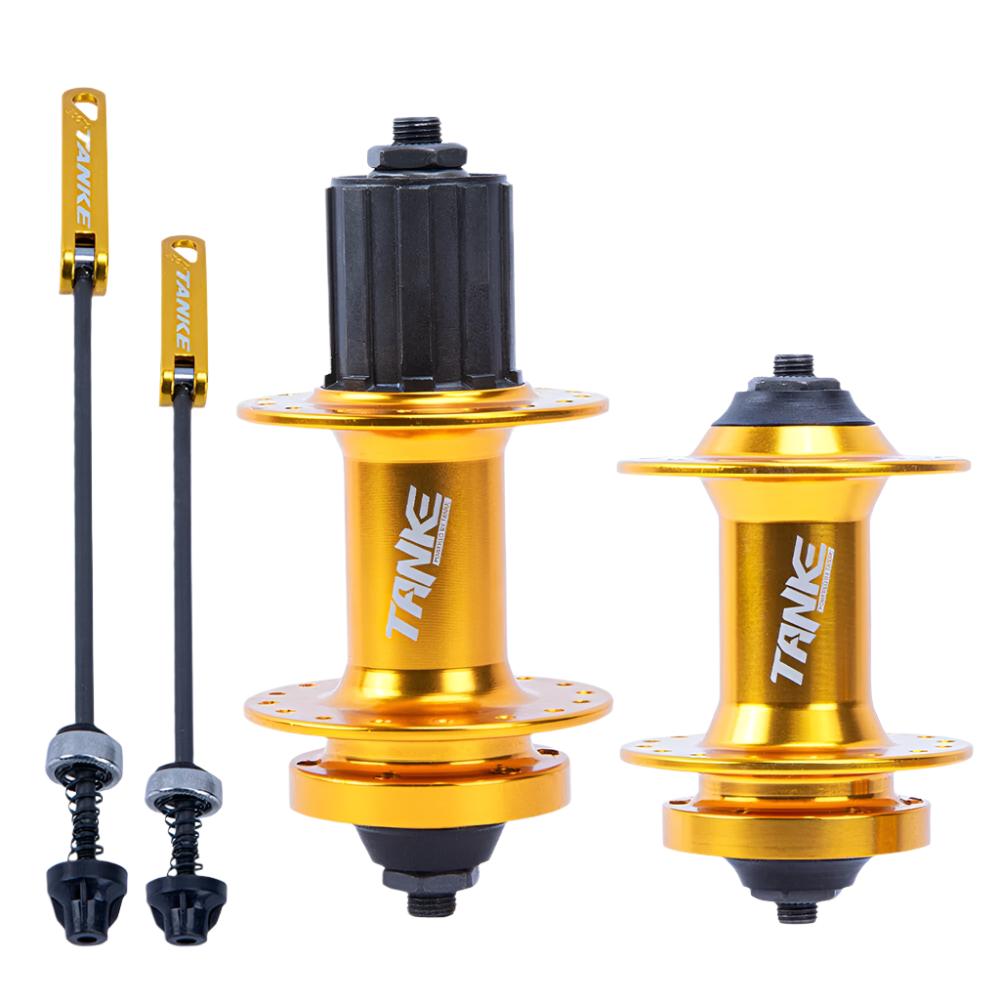

TANKE MTB Steel Beads bicycle Hub
*Brand: TANKE
*Model: TH-11
*Material: high strength Steel
*Type: mountain bike, 6 nails
*Holes: 28 32 36 holes
*Spokes: curved spokes
*Bearing: Ball bearing
*Installation: Quick Release
*Freehub: HG 7-12 speed cassette cogs
*Tooth density: 6 pawls
*Color: Black / red / Blue / Golden / Silver
*Brake type: disc brake
Front Hub：100mm / 260g
Rear Hub：135mm / 455g
Ball type disc brake flower drum
Tower base supports 7-12 speeds
Give you the flower drum you want easy to install
Aluminum alloy drum body (chrome steel tower base /shaft center)
Wear resistant steel ball structure
CNC slit cutting process
6064 high-strength aluminum alloy
High strength steel shaft center
TH-11 parameter introduction
Anode process, rust proof anti-corrosion and wear-resistant
Product name: TH-11 ball drum
Material: aluminum alloy drum (chrome steel tower base/shaft center)
Color: black/red/blue/gold/silver
Tower base: HG tower base, supporting 7-12 speeds (2 tower base gaskets shall be added for 7 speeds)
Tower base structure: 3 ball pawls
Rbte: 58mm
Opening size: front flower drum 100mm rear flower drum 135mm
Weight: front flower drum 258 g rear flower drum 442 g
Diameter of shaft center: 5.0mm Tower base structure: 3 ball pawls Number of spoke holes: 32 Hole pitch dimension: 58mm
Opening size: front flower drum 100mm rear flower drum 135mm
Weight: front flower drum 258 g rear flower drum 442 g
Diameter of shaft center: 5.0mm
Aluminum alloy drum High quality steel shaft
It is made of 6064 high-strength aluminum alloy which is sturdy and durable, Oxidation resistance, impact resistance no deformation and warping
Chromium molybdenum steel tower base Good shock absorption
Good sudden fire
High temperature resistance
High voltage resistance
The locating point shall be accurate Only then can the flywheelbe clampedForged wear-resistant steel ball structure
Each steel ball is close to the steel ring Low friction, high speed, low noise Average service life increased by 60%!
TH-11 front flower drum 18 steel balls
9 on one side,
3.175mm steel ball
Single steel ball diameter 3.175mm
OC0
TH-11 rear flower drum 18 steel balls
9 on one side.
Single steel ball
3.175mm steel ball
diameter 6.35mm
Colorful anode process
The drum body is more corrosion resistant
Enhanced wear resistance and hardness It can better protect the metal surfaceColorful anode process The drum body is more corrosion resistant
Enhanced wear resistance and hardness It can better protect the metal surface!High strength quick release rod
Anode process aluminum alloy+steel material
