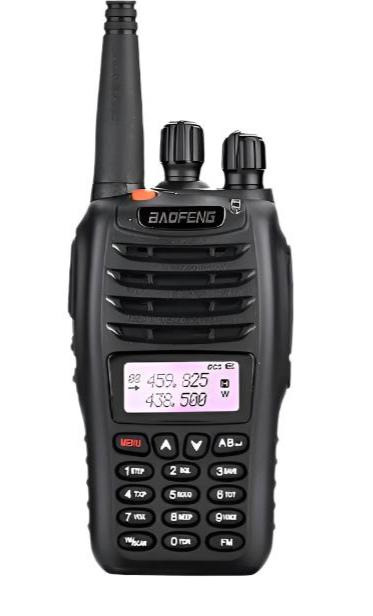

Baofeng UV-B5 UHF/VHF 400-480/136-174MHz Dual Band FM Two Way Radio Walkie Talkie Transceiver Interphone
Baofeng UV-B5 UHF/VHF 400-480/136-174MHz Dual Band FM Two Way Radio Walkie Talkie Transceiver Interphone
Baofeng UV-B5 UHF/VHF 400-480/136-174MHz Dual Band FM Two Way Radio Walkie Talkie Transceiver Interphone
Baofeng UV-B5 UHF/VHF 400-480/136-174MHz Dual Band FM Two Way Radio Walkie Talkie Transceiver Interphone
Baofeng UV-B5 UHF/VHF 400-480/136-174MHz Dual Band FM Two Way Radio Walkie Talkie Transceiver Interphone
Baofeng UV-B5 UHF/VHF 400-480/136-174MHz Dual Band FM Two Way Radio Walkie Talkie Transceiver Interphone
Baofeng UV-B5 UHF/VHF 400-480/136-174MHz Dual Band FM Two Way Radio Walkie Talkie Transceiver Interphone
Baofeng UV-B5 UHF/VHF 400-480/136-174MHz Dual Band FM Two Way Radio Walkie Talkie Transceiver Interphone
Baofeng UV-B5 UHF/VHF 400-480/136-174MHz Dual Band FM Two Way Radio Walkie Talkie Transceiver Interphone
Baofeng UV-B5 UHF/VHF 400-480/136-174MHz Dual Band FM Two Way Radio Walkie Talkie Transceiver Interphone
Baofeng UV-B5 UHF/VHF 400-480/136-174MHz Dual Band FM Two Way Radio Walkie Talkie Transceiver Interphone
Baofeng UV-B5 UHF/VHF 400-480/136-174MHz Dual Band FM Two Way Radio Walkie Talkie Transceiver Interphone

    Baofeng UV-B5 UHF/VHF 400-480/136-174MHz Dual Band FM Two Way Radio Walkie Talkie Transceiver Interphone

    $45.80
    • Barcode:
    DESCRIPTION


    1) Output : 5W/2W
    2) Frequency Range: 136.00-174.00 MHz
    400.00-470.00 MHz
    3) PC or Manual Program
    4) Radio Function
    5) Voice Prompt
    6) DTMF Code
    7) 50 CTCSS and 104 DCS Codes
    8) Time-out Timer (TOT)
    9) Step Frequency(5,6.25,10,12.5,20,25KHz)
    10) Battery Saving
    11) VOX Function
    12) Busy Channel Lock Function
    13) Low Battery Warning
    14) Dual Band, Dual Display and Dual Standby
    15) Auto Back Light
    16) 3 Scanning Ways (Time, Carrier wave, Search)
    17) PTT-ID (Press PTT to transmit code, release PTT to transmit code, or both can transmit code)
    18) Frequency Difference Setting
    19) Keypad Number directly choose the Menu Function
    20) Reverse Frequency Function
    21) High illumination Flashlight
    22) High &Low Power Switchover
    23) Priory Scanning Function
    24) Wide/Narrow Band Selection
    25) ANI Code Edition
    26) Relay Forwarding Confirmed (1750 HZ)
    27) Noise Reduction
    28) U/V Cross Band Dual Watch
    29) Dimension: 116x58x36mm

    Unity Section:
    Frequency Range:
    136.00-174.00 MHz
    400.00- 470.00MHz
    Storage Channel
    99
    Step Frequency
    2.5/5/6.25/10/12.5/20/25KHz
    Rated voltage
    DC 7.4 V
    Battery Capacity
    H-1800 mAh
    Battery Life
    About 10 Hours
    Frequency Stability
    2.5ppm
    Work Temperature
    -20 to +60
    Frequency Combination
    PLL frequency synthesis
    Antenna Impedance
    50
    Wok Mode
    Same Frequency simplex Operation or Different Frequency simplex Operation
    Dimension
    116x58x 36 mm (Excluded Antenna)
    Transmitter
    Output Power
    5W/ 2 W
    Modulation Mode(W/N Band)
    FM (F3E)
    Maximum Frequency Deviation (W/N Band)
    <5KHz(W), <2.5KHz(N)
    Spurious Power
    7.5 ?W
    Adjacent channel power
    65dB (W) ,55dB (N)
    Spurious Radiation
    <-60 dB
    Audio Distortion
    <5 %
    SNR
    45dB(W), 40dB(N)
    CTSCC/DCS Frequency Deviation(W/N Band)
    0.70.1KHz (W), 0.40.1KHz (N)
    Modulation Sensitivity
    8-12mV
    Transmitting Current
    1200mA
    Receiver
    Sensitivity
    0.20 ? V (12dB SINAD)
    Audio Power
    1 W
    Inter modulation Interference Resistance
    65dB (W), 55dB (N)
    Adjacent channel Sensitivity (W/N Band)
    65dB (W), 55dB (N)
    Audio Distortion
    5 %
    Receiving Current
    400m A
