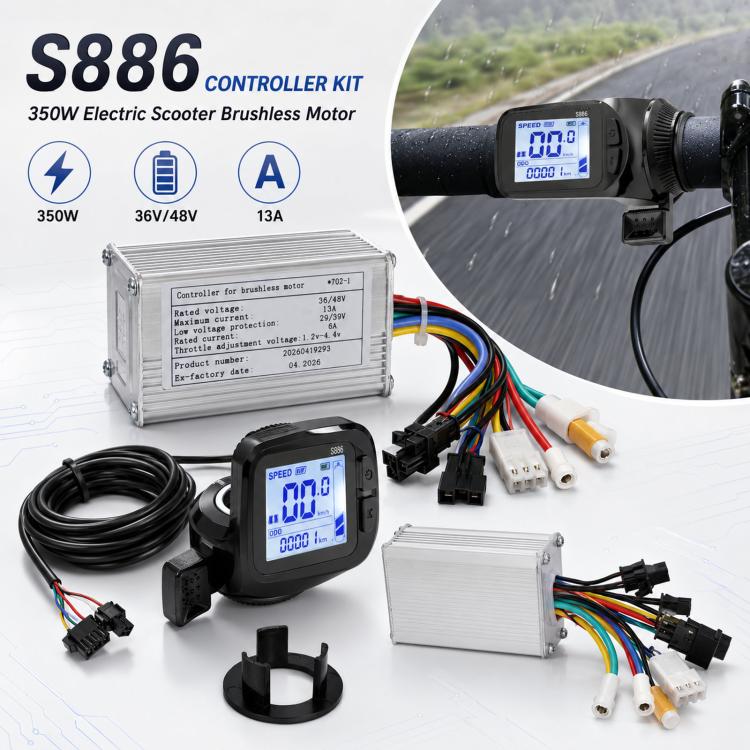

1. Features a dual-voltage 350W brushless motor controller matching both 36V and 48V electric scooter systems. Under 13A maximum current (6A rated current), it delivers stable power output for consistent daily riding.
2. The S886 LCD control panel integrates the display and thumb throttle into one unit. It provides clear real-time readings of current speed, gear, trip distance, and remaining battery life, designed to fit standard 22.6mm handlebars.
3. Equipped with a highly durable main cable measuring 181.6cm in length and 4.1mm in thickness. Features a 5-pin and a 2-pin connector interface, providing secure connections and ample routing space for your vehicle.
4. The controller is built with a rugged, ribbed aluminum alloy housing for efficient heat dissipation. This thermal design assists in temperature regulation, protecting internal circuits from overheating during continuous operation.
5. Ideal replacement parts for 350W electric scooters, electric bicycles, and folding e-scooters. To ensure proper functionality, please check your original controller's maximum current limit (13A) and connector wiring sequences before purchasing.
Specification:
| Package Weight |
| One Package Weight |
0.42kgs / 0.93lb |
| One Package Size |
20cm * 15cm * 10cm / 7.87inch * 5.91inch * 3.94inch |
| Carton Weight |
9.50kgs / 20.94lb |
| Carton Size |
36cm * 32cm * 47cm / 14.17inch * 12.6inch * 18.5inch |
| Loading Container |
20GP: 492 cartons * 20 pcs = 9840 pcs
40HQ: 1143 cartons * 20 pcs = 22860 pcs
|
|
